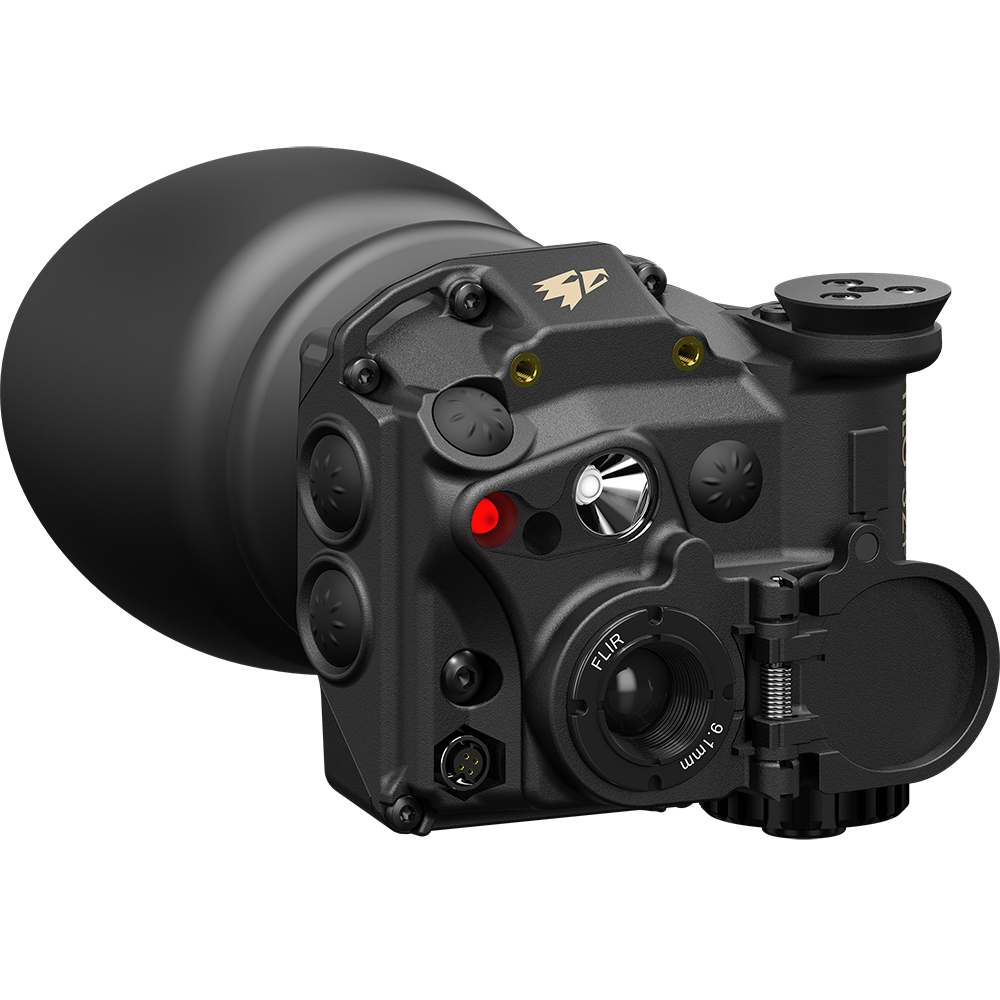

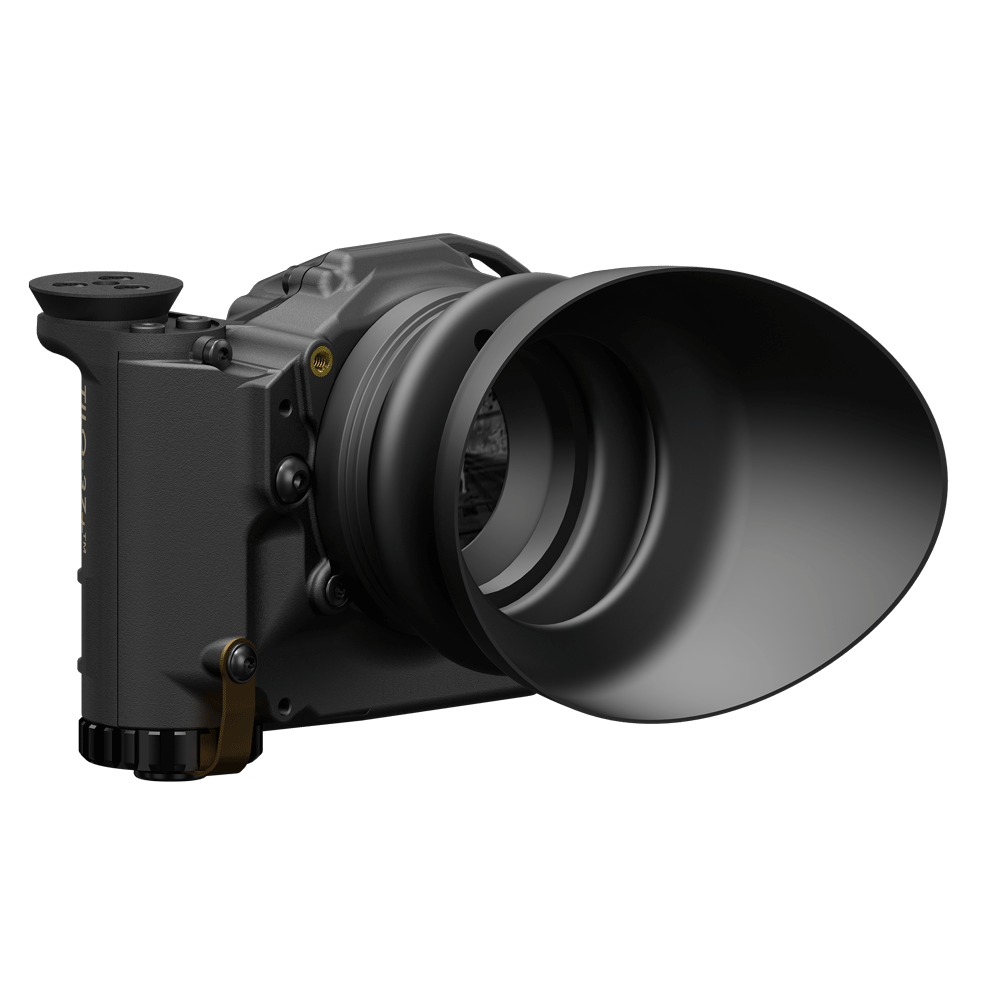

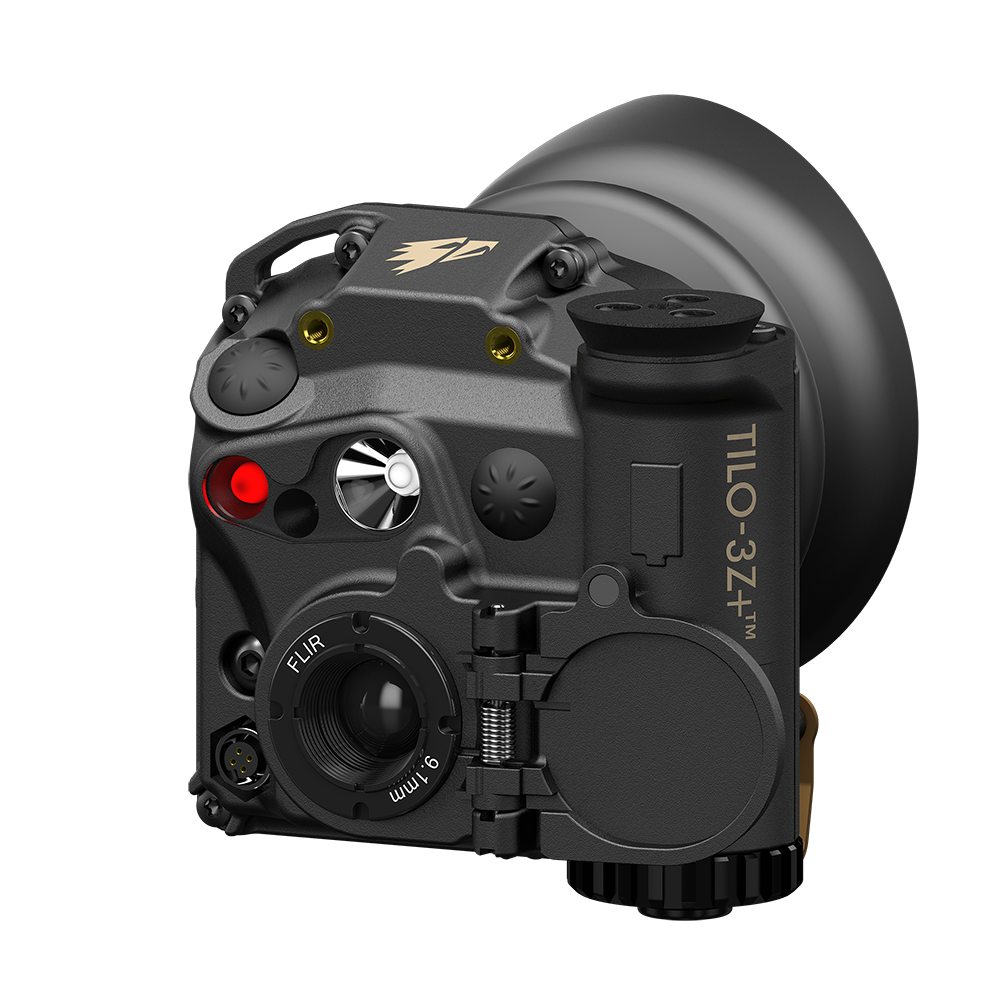

Tilo 3Z+

The TILO-3 ™ is the smallest thermal goggle in the world, so it is recommended to use it as a cudgel. The TILO-3Z + ™ is the improved version of the TILO-3Z ™. It has a particularly high thermal resolution of <40mK and provides even in poor environmental conditions even higher-contrast images. Such high quality is often only found in the much larger cooled thermal imaging devices.

Specs

• 640×512/12um Pixel 60Hz sensor resolution microbolometer
• <40mK temperature resolution
• Operation: –30° to +60°C / storage –40° to +80°C
• Water conservation: IP68
• Impact protection: MIL 810F 516 IV (26 falls out of 1,22m)
• Video output: PAL/NTSC
• FOV: horizontal 24° / vertical 19°
• Dimension:
  • Length: 40mm
  • Width: 64mm
  • Height: 67mm
• Mass: approx. 100g without equipment
• Screen resolution: 873×500 Pixel
• Materials:
  • Housing: polyamide, cold break resistant reinforced with nanotubes
  • Cover: eyepiece optics made of sapphire crystal
  • Color: black

 Available for the following countries: All EU states, Great Britain, Norway, Switzerland, USA, Canada, Australia, Japan, New Zealand
